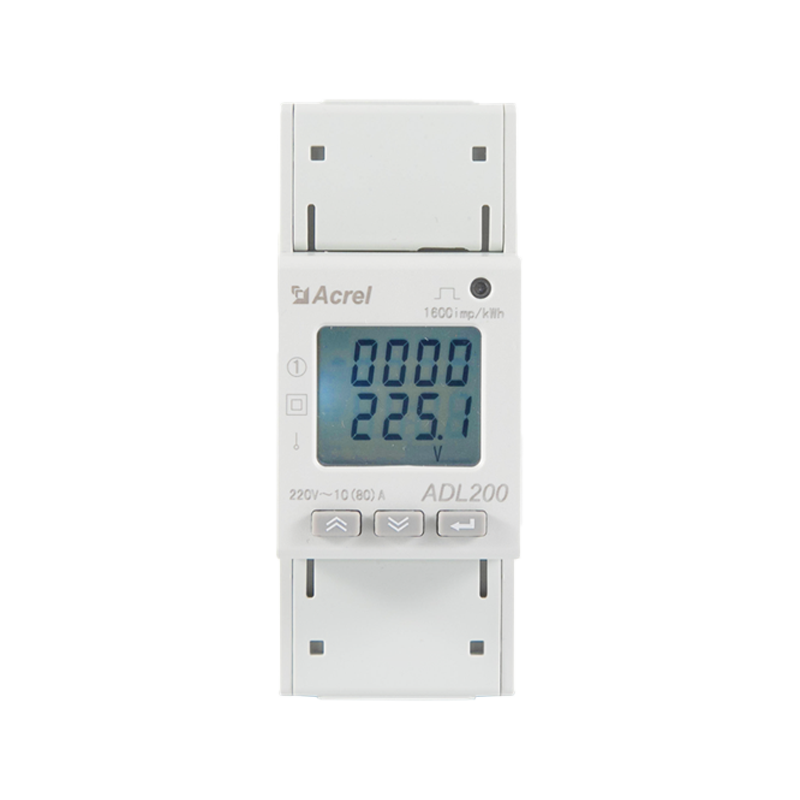

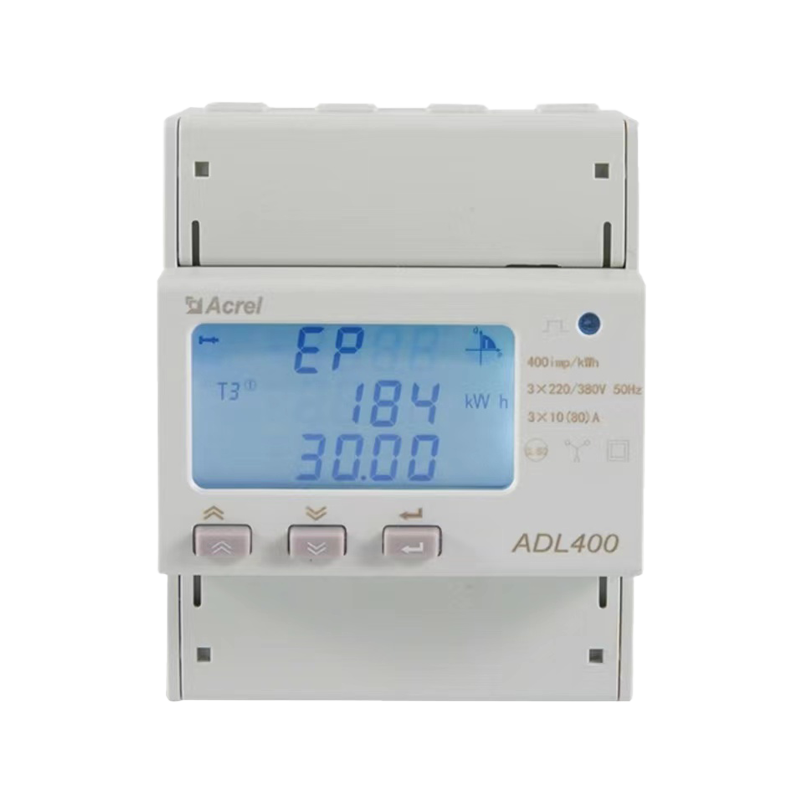

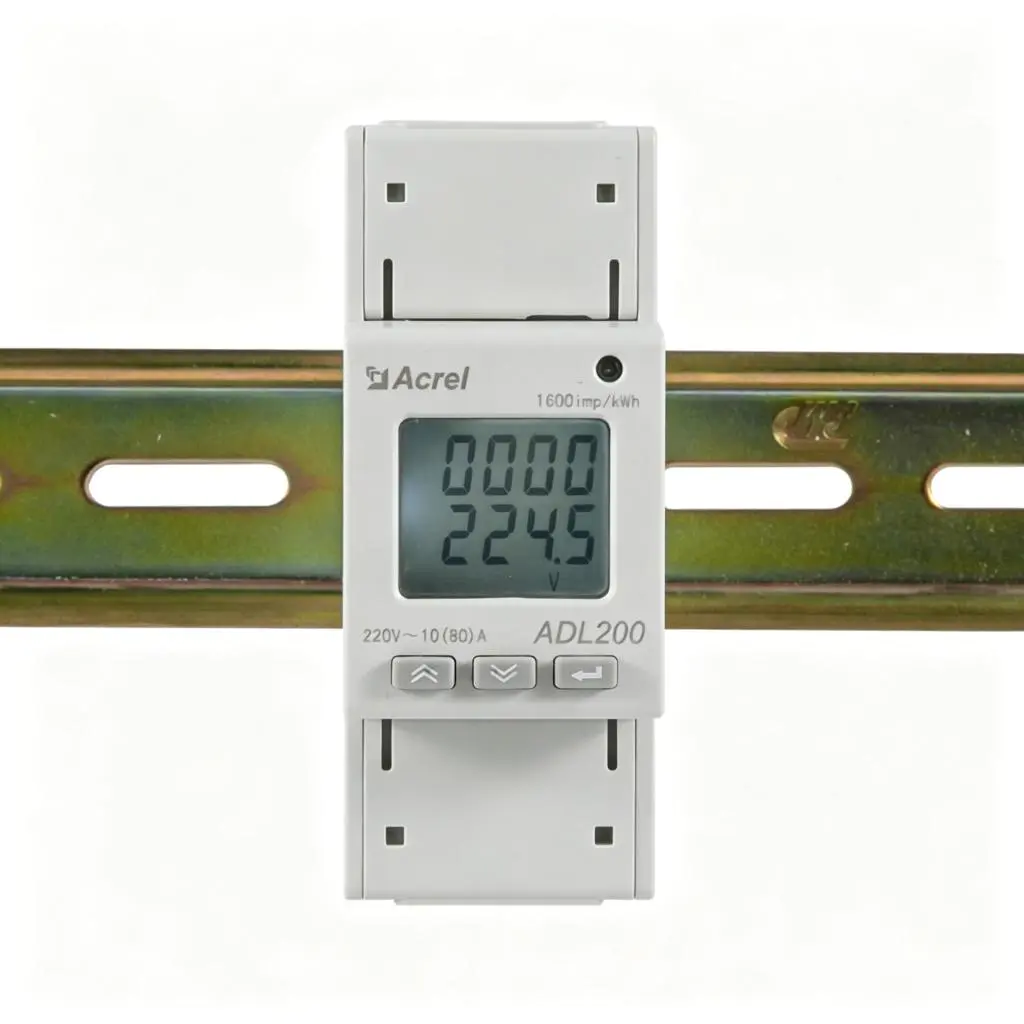

Rated Current 80A Directly

MID Certificated

High Accuracy Class C

35mm DIN Rail Mounted

Pulse Output

4 Modules 72mm Width

MID Certificated

For IoT Energy Management, Factory, School

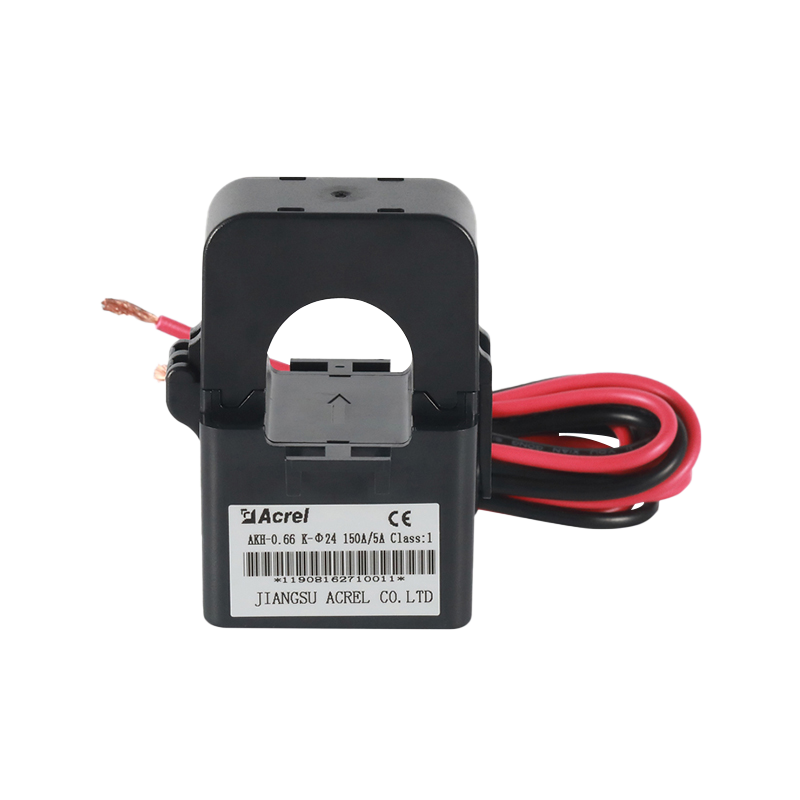

Split Core

Clamp on Installation

High Accuracy Class 0.5

150-1000A Input Current

5A/1A Secondary Output

Application: Renovation Projects

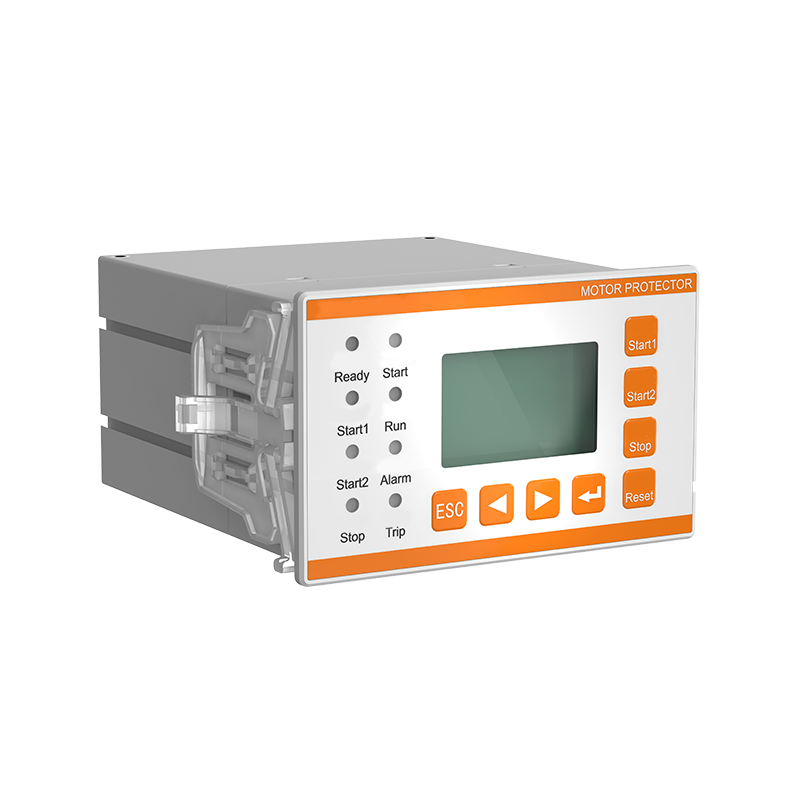

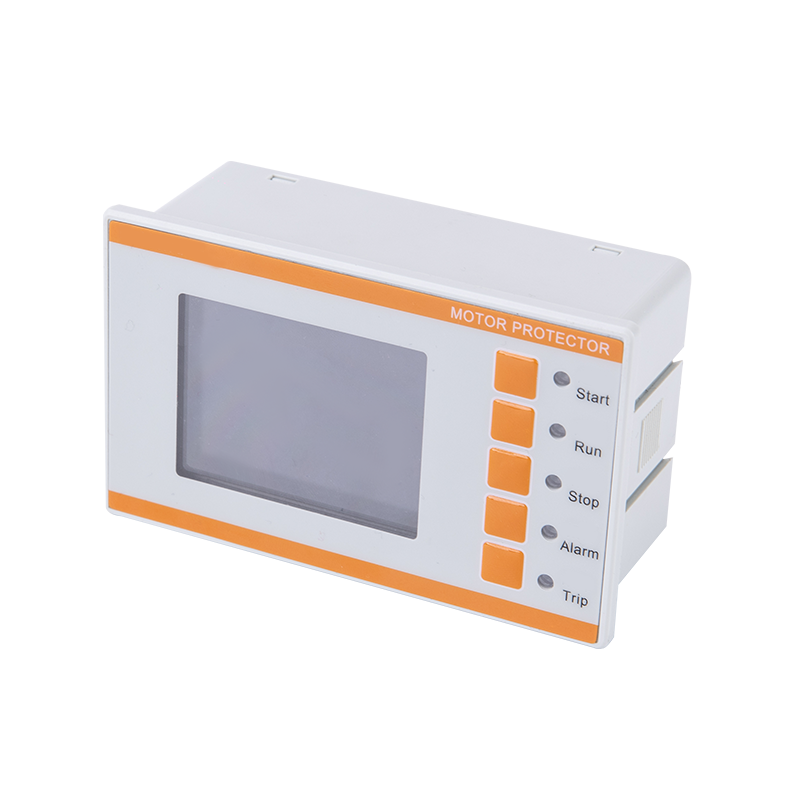

Event recording

Start control function

programmable DI and DO

Profibus-DP communication

Anti-shaking function

Analog output

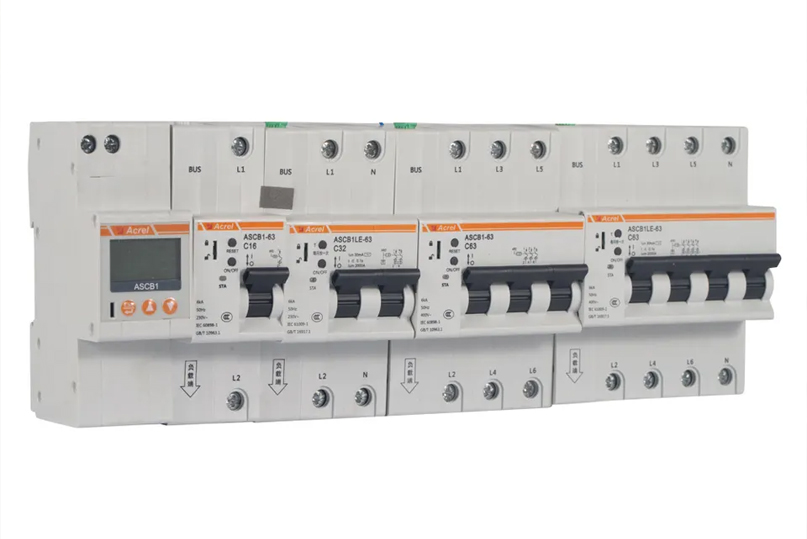

Event recording

leakage protection

AC380V/690V

programmable DI and DO

Analog output

Anti-shaking function

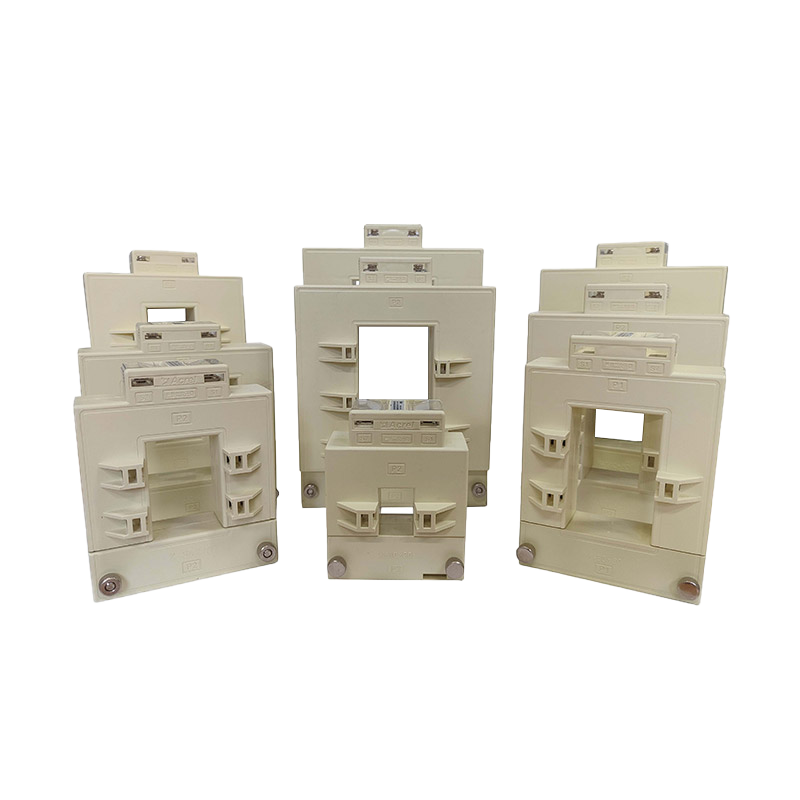

Split Core

High Accuracy Class 0.5

Current Input 20-6000A

Current Output 5(1)A

Rectangular Hole Design

Measurement of current (I)

Application: Renovation Projects

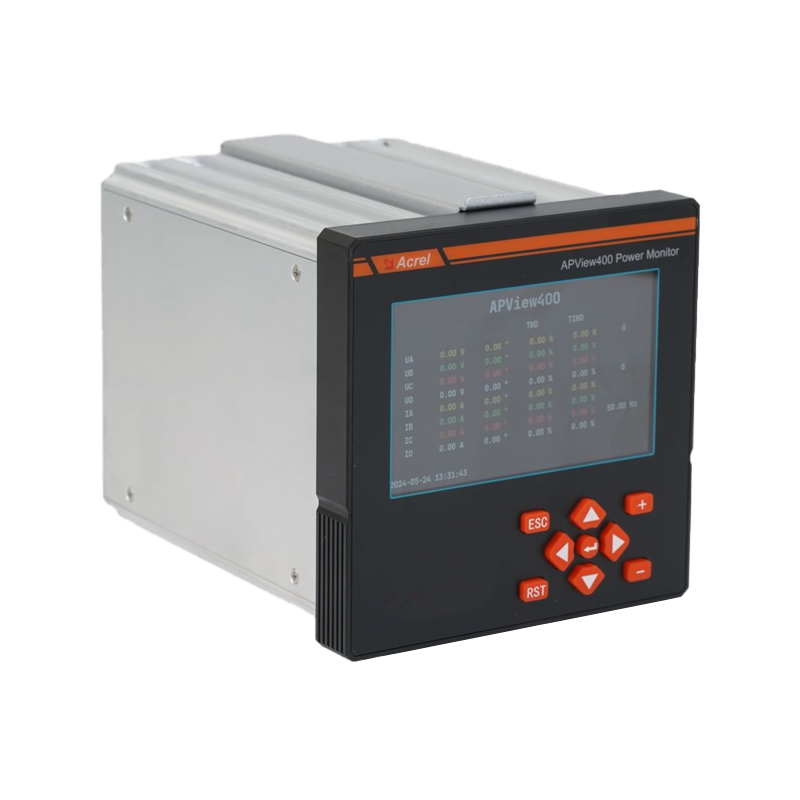

IEC61000-4-30 Ed3 Class A Certificate

IEC60253-22 Class 0.2S

Disturbance Waveform Recording

Disturbance Direction Detection

2000+ Waveform Recording

5000+ SOE Recording

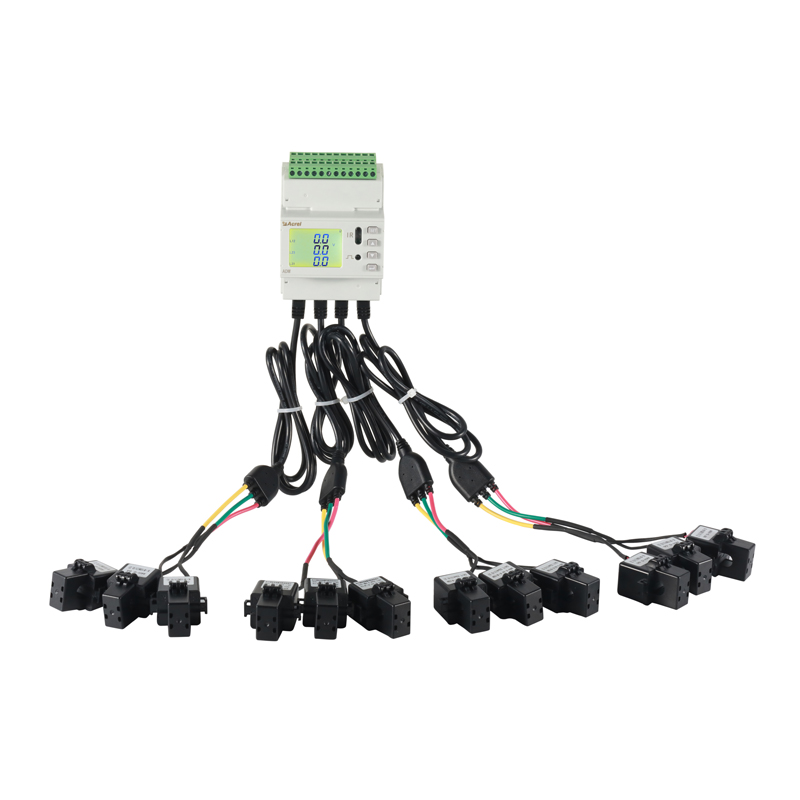

Multi-Circuits Measurement

Max. 4 Channels Three Phase or 12 Channels Single Phase

CE Certificated

RS485 Communication

Application: Base station

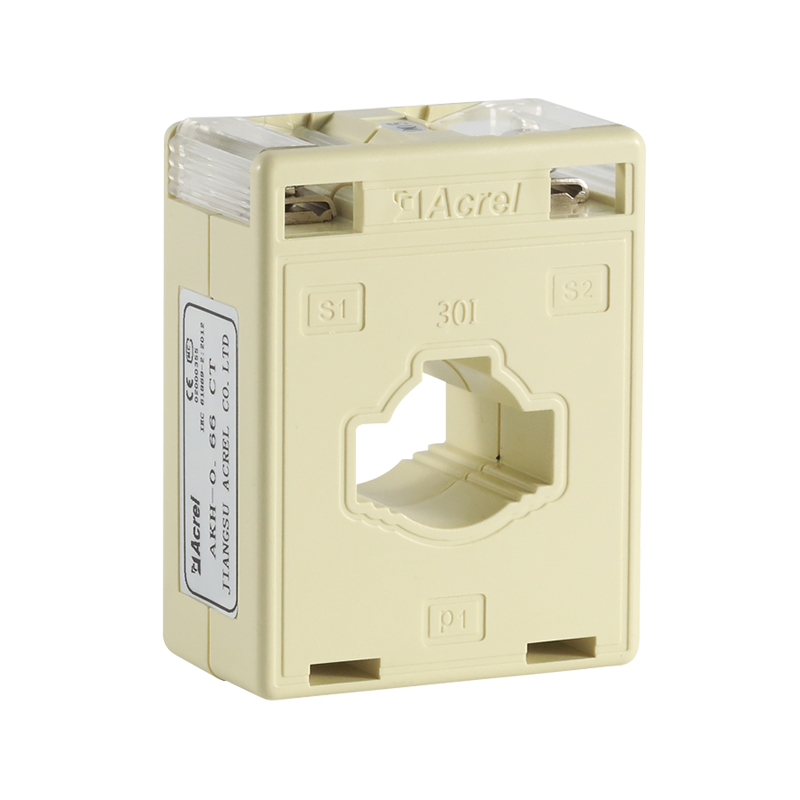

Solid Core

High Accuracy Class 0.5

5A output

Measurement of current (I)

Application: Busbar,Cables. New construction projects

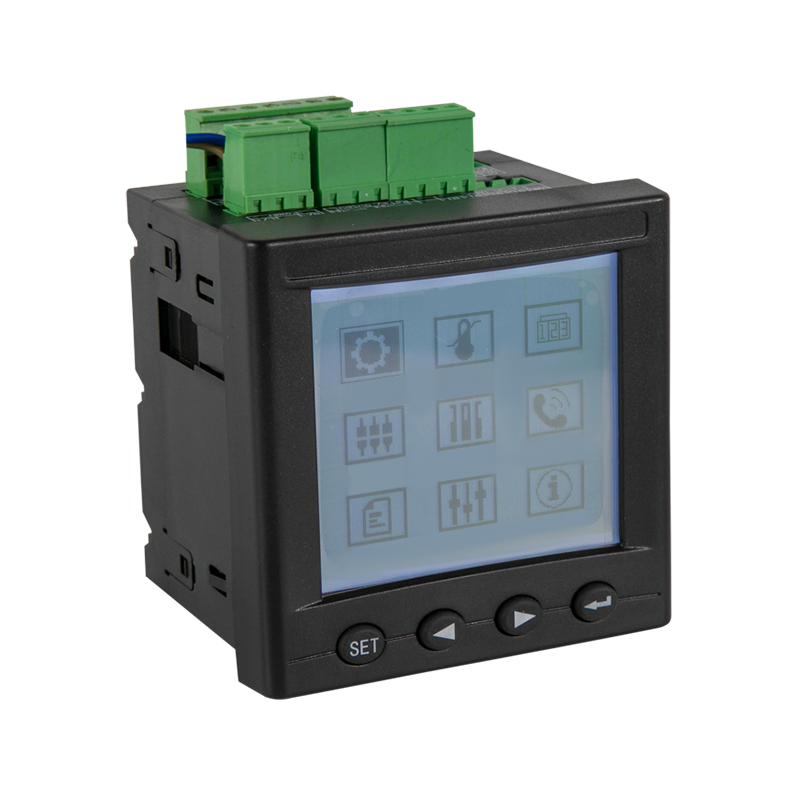

Uplink data: RS485, Modbus-RTU

Accuracy 0.5 class

maximum 60 ATE temperature sensors data collection

4DI/2DO

Panel: 96*96*17mm, depth:65mm

CE&RED Certification

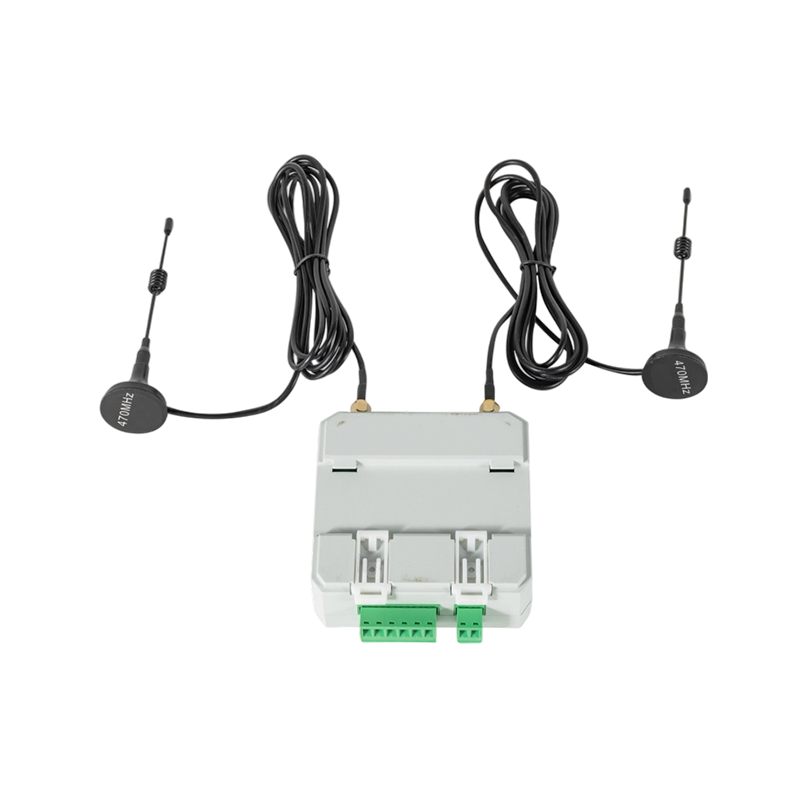

Model:C: Receiver; Z: Repeater; M: Receiver

Uplink data: RS485, Modbus-RTU

35mm Din Rail Mounted

ATC600-C receive 240 ATE400, ACE100

ATC600-Z: The Lora Relay is forwarded to ATC600-C, and the forwarding distance can reach 1000 meters;

ATC600-M can receive 240 ATE300M, ATE210

Power Supply: AC/DC 85V-264V or DC 12~48V

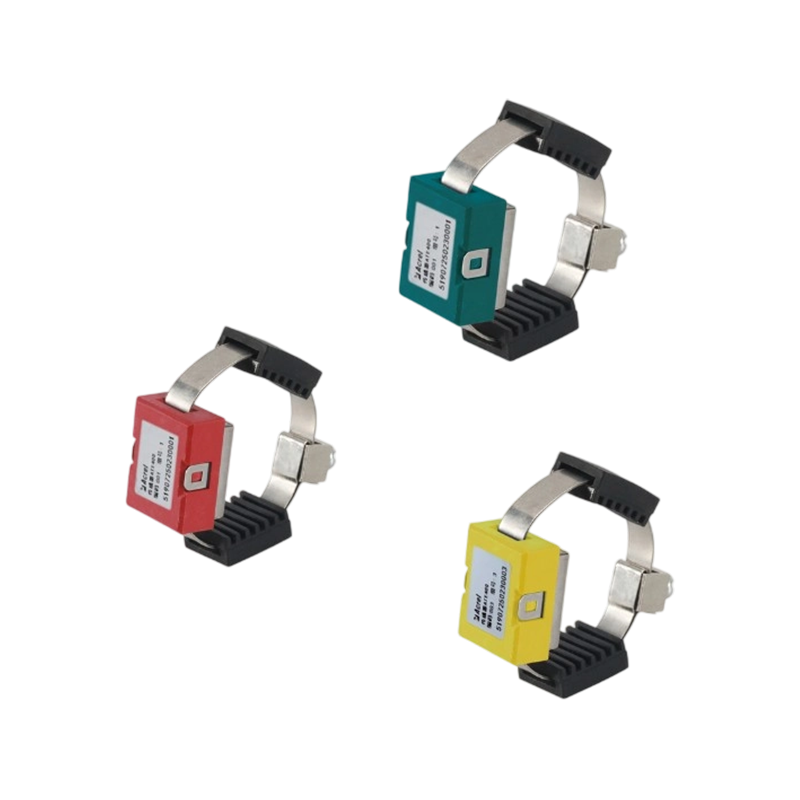

CT-powered, starting current≥5A

470MHz、433Mhz Wireless Frequency

15s Sampling frequency

15s Transmission frequency

-50℃~125℃ Temperature Range

Application: cable joints/Busbars/Contacts in LV/HV Switchgear

Split Core Clamp on Installtion

High Accuracy Class 0.5

5A/1A

Measurement of I

Application: Renovation Projects
